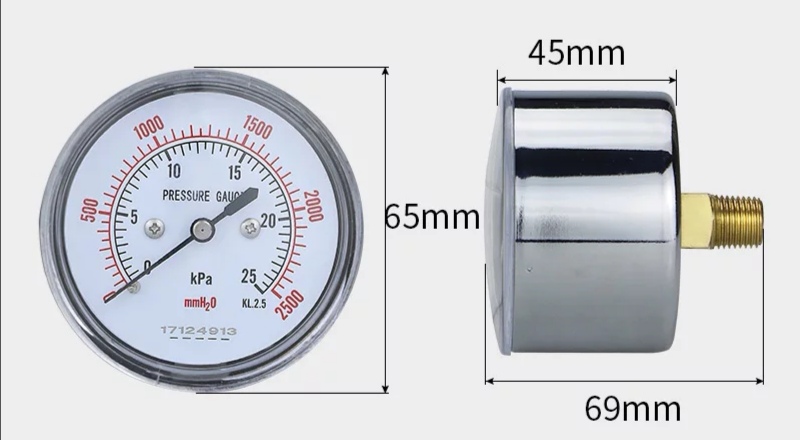

Size: 2.5"(63mm), 4.0"(100mm), 6.0"(150mm)
Pressure range: -0.1MPa~0~100kpa

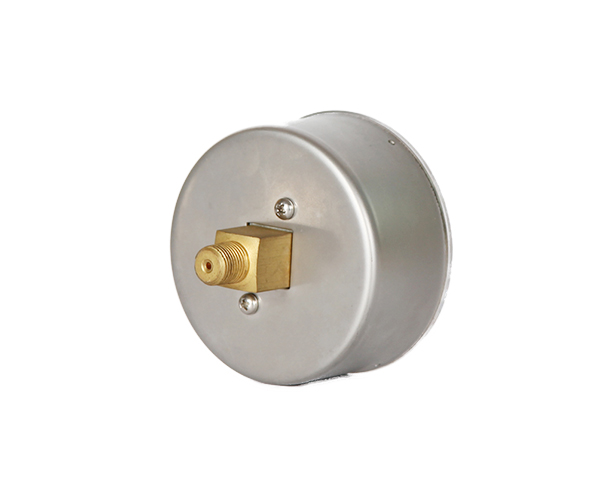

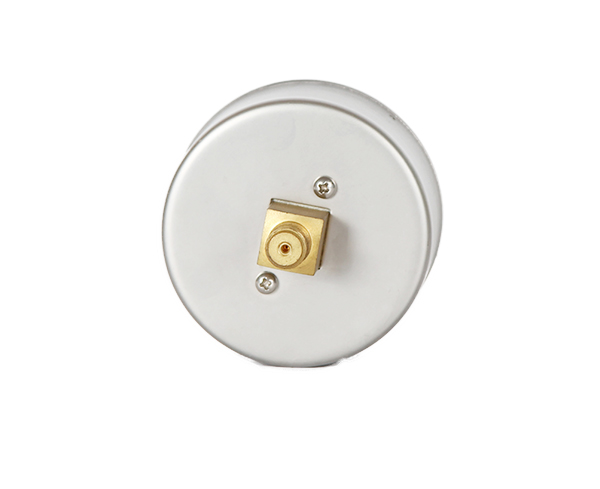

Socket: Lower back mount or center back mount
Connection thread: NPT, BSP customized threads
Tube: Brass or copper alloy or stainless steel
Case: Stainless steel or steel
Bezel: Removable stainless steel bezel
Window (lens): Polycarbonate, glass and acrylic

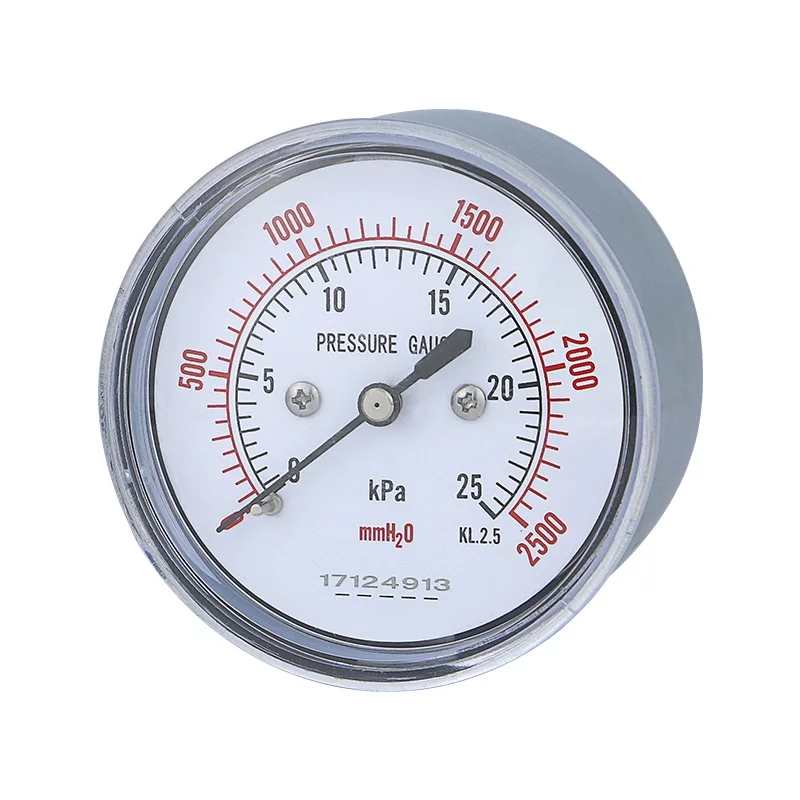

Dial plate: Single and dual scale (psi, kpa, mpa, bar, kg/cm2)
Accuracy: 1.6%, +/-2.5% (ASME B40.1 Grade B)
Ambient temperature: -25~55℃
