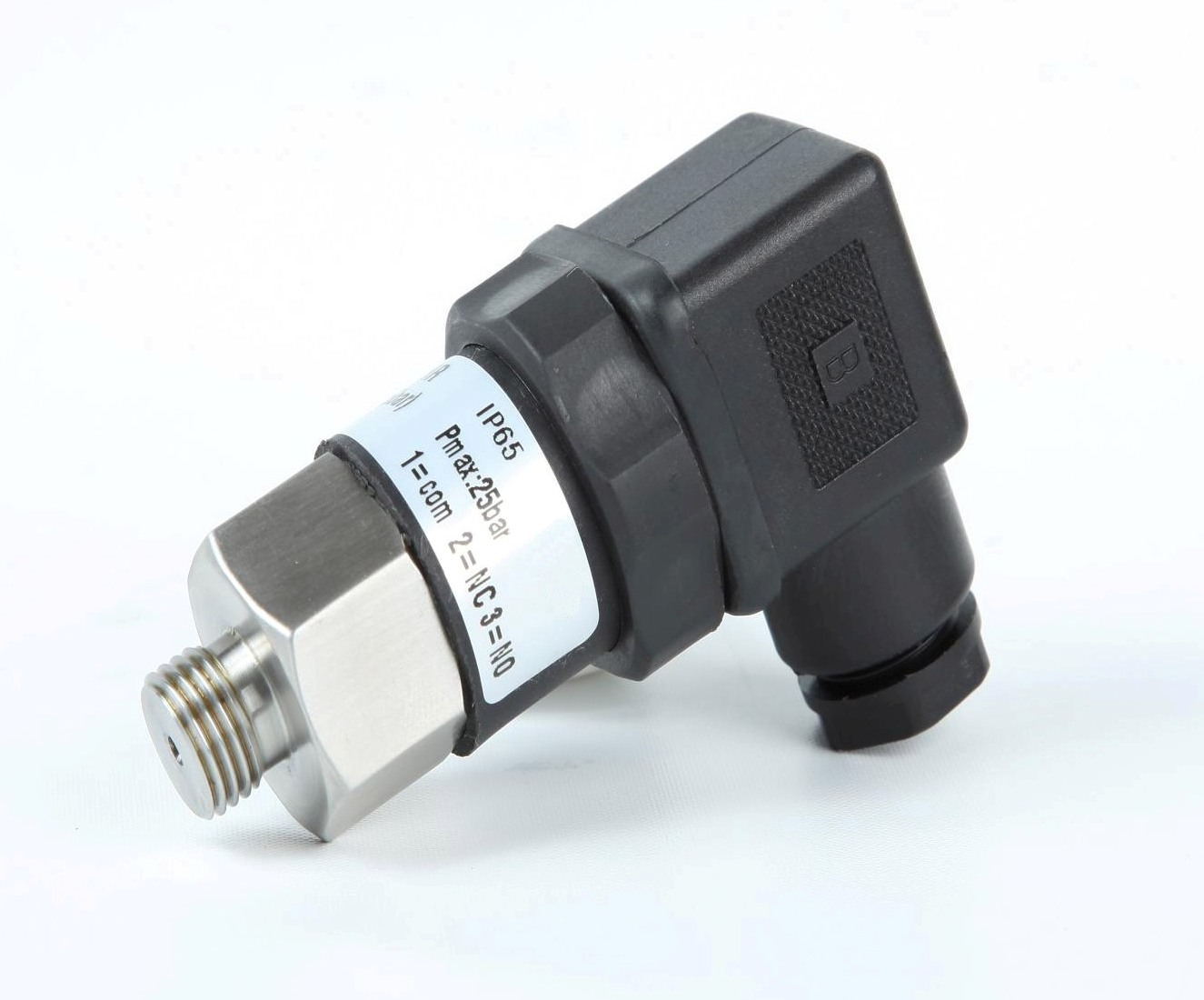

MC2010 compact pressure switch is a kind of small structure and flexible use. The built-in piston is attached to a precision spring, and the expansion of spring expands varies as the pressure changes. When the pressure reaches the set point, the product triggers the preset mechanical structure and sends a switch signal. The output of MC2010-S pressure switch is normally open and normally closed (SPDT).
Features
Parameters
Dimensions
Model Instruction
Model |
Overload(bar) |
Range of adjustment (bar) |
Accuracy
|
Hysteresis(bar) |
Weight (kg) |
MC2010-02.5M |
25 |
0.2-2.5 |
3% of set point |
20%-35% |
0.1 |
MC2010-005M |
25 |
0.8-5.0 |
|||
MC2010-012M |
25 |
1-12 |
|||
MC2010-050S |
200 |
5-50 |
|||
MC2010-100S |
300 |
10-100 |
|||
MC2010-200S |
300 |
20-200 |
|||
MC2010-400S |
500 |
50-400 |
Pressure Point Adjustment
1st step, Unscrew the nut in the middle of the Hersman with a screwdriver and pull off the Hersman joint.
2ed step, Adjust the pressure setting point with a small wrench. Set the point up clockwise and set the point down counterclockwise.
