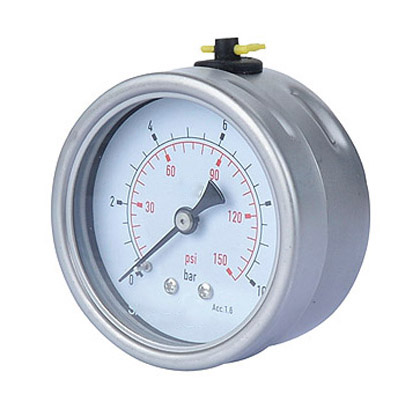

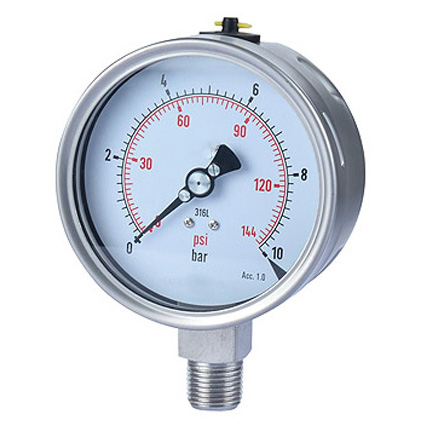

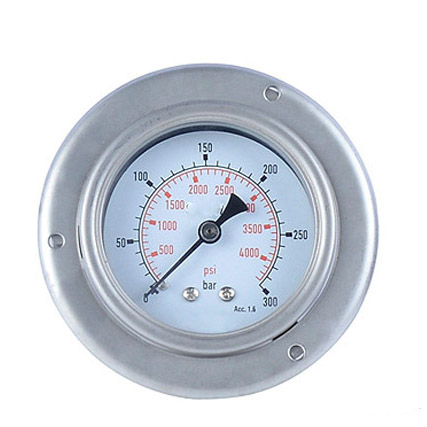

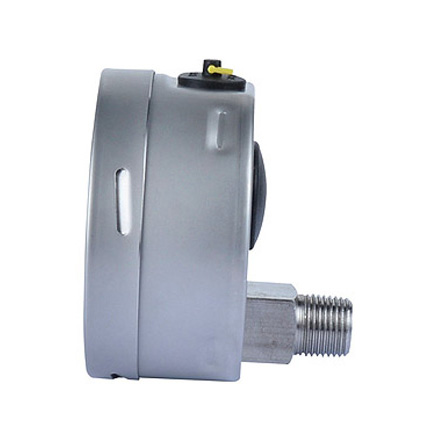

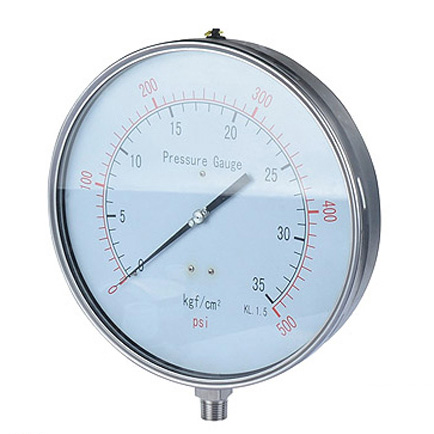

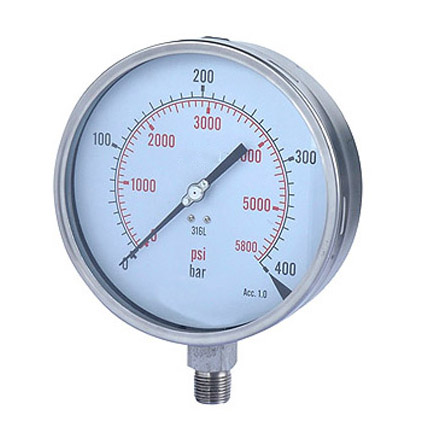

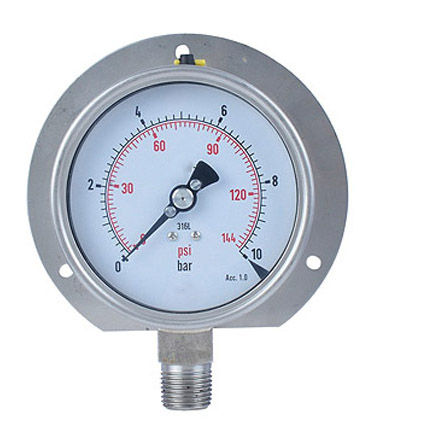

MYBF-LW Series is a premium design pressure gauge with fully stainless steel construction, liquid fillable and with various option used in extreme corrosive & severe environment. MYBF-LW series can be incorporate with most accessories such as diaphragm chemical seal, siphon, dampener, etc. to further extend it usages. Commonly, it is applied in process industries, mining, power plants, steel mills, pulp & paper, water & sewage, petrochemical plants, etc..

Technical Specification
Nominal Size: 63,100, 150, 200 and 250mm
Accuracy Class: Class 1.0
Ingress Protection: IP65
Connection Size: G1/4, G1/2 or NPT or others
Pressure Range: 0..1000bar, 0..4000bar, Vacuum -1 bar..0, Compound -1..24 bar
Tube Element Shape: P≤100 bar in C tube, P＞100 bar in helicoid

Filling: Dry or liquid filled

Operating Temperature: Ambient temperature -30o..+70℃, Medium temperature 180℃ Max.
Temperature Error: Additional error when pressure element temperature deviates from reference  temperature +20℃(+68oF), be ±0.4%/10℃(50oF) rising or falling
Over Pressure Limit: 130% of F.S.P≤100 bar, 115% of F.S.P＞100 bar
Dial Graduation: Black graduation on white for single range, Black and red graduation on white for dual ranges

Design Material
Casing and Bezel Ring: Stainless steel 304
Sensing Element: Stainless steel 316
Connection: Stainless steel 316
Window: Plain instrument glass or laminated glass
Window gasket: Industrial rubber seal
Pointer: Black painted aluminum
Dial Plate: Aluminum alloy
