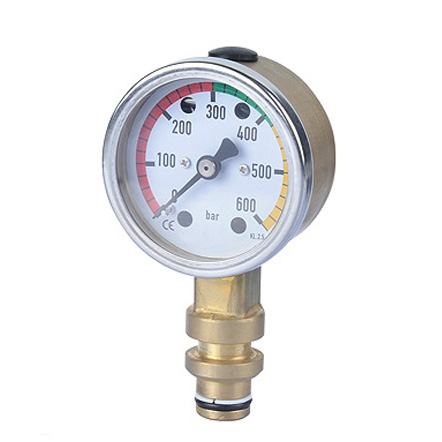

Description
Nominal size in mm : 50
Accuracy class : 2.5
Scale range : 0 ... 600 bar
Pressure limitation Steady: 3/4 * full scale value
Fluctuating: 2/3 * full scale value
Short time: full scale value
Operating temperature Ambient: +10 ... +60 ℃; Medium: +60 ℃ maximum
Temperature effect: When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
Applications
For mining equipment and plants (hydraulic roadway support). Application with dynamic loads, load cycles, pressure spikes, vibrations
Options
Other process connection
Case lacquered to customer requirements
Dial Pointer: Special lacquer, coated with luminous paint
