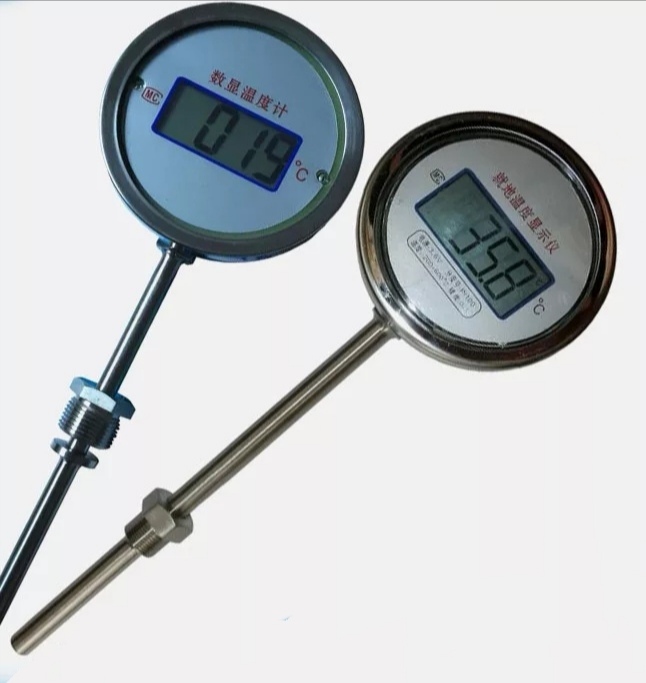

MCT8081 Digital Thermometer with display is a kind of product can be on-site installed on non-explosive condition. It consists of RTD and temperature transmitter model, and measures the temperature of the objects. It gives an on-site LCD (or LED) display to indicate the measurements temperature value. The products are extensively applied in the petroleum, chemistry industry, metallurgy, electric power, textile industry, food processing etc.

Technical Parameters:

Case diameter：100mm

Range: -200～450℃ User specified

Accuracy: 0.5%

Probe length: User specified

Connection: Fixed connection or Sliding connection. Thread or Flange or Customized.  G1/4" or G1/2" or NPT or Customized.

Sensing element: RTD

Dial graduation: Standard in dual ranges ℉ and ℃

Probe sensor: Stainless steel.

Power supply: Battery-powered or 14-34VDC, 24VDC

Field LCD display

Operating temperature and humidity:-20~60℃, ≤85%RH
