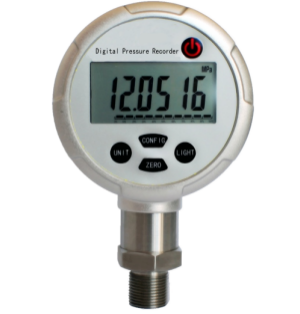

MC2080Y-HP-X is a battery powered high precision pressure gauge and pressure recorder. With an LCD display. it is perfect for applications requiring display pressure readings. Available on-screen data includes: statistics (max., min., average); recording status (start, stop and recording rate), display options (channel, units, text size); calibration information (data calibrated, data for recalibration). Statistics can be cleared at any time during logging. MC2080Y-HP-X has one of the largest memory capacities of any similar data recorder on the market. The non-volatile memory will retain recorded data, even if battery power is lost. Simply connect the interface cable to an available USB Port and, with a few clicks of the mouse, data is downloaded and ready for review and export to EXCEL. Readings, similar products in the amount of storage is relatively large, power outages data is not lost. With a serial connection, using simple mouse operations, you can export the data to EXCEL.
APPLICATIONS
Laboratory, Warehouse Museum
HVAC application Medical/Pharmaceutical Environmental monitoring Food standard monitoring Food storage
Fresh and live goods transportation
FEATURES
Pressure measurement uncertainty: 0.05%FS, 0.1%FS
Advanced temperature compensation
Replaceable batteries
Display: Dual-line 6 full digit LCD with LED Backlight
Pressure Units: Pa, kPa, MPa, psi, bar, mbar, inH2O, mmH2O, inHg, mmHg
Response Time：0.1ms
Start/Stop Time: Software programmable start time and date, up to six months in advance.
Memory Capacity: 262143 readings
Reading Rate: 1 reading every 2 seconds to 1 every 24 hours
Compensated Temperature: 32F to 122 F (0 C to 50 C)
*0.025%FS accuracy guaranteed only over the ambient temperature range of 68 F to 77 F (20 C to 25 C)
Storage Temperature: -4 F to 158 F (-20 C to 70 C)
Humidity: <95%
Media Compatible:
(0 ~0.16) bar: Non-corrosive Gas Compatible
(0.35~ 2500) bar: Liquid, Gas or Steam Compatible with 316 Stainless Steel
Over Pressure Warning: 120%
Battery: 3 AA alkaline batteries or one 3.6V lithium battery
Battery Life: 1 year battery life at 1 minute reading rate with display off
Enclosure case material: Aluminum alloy
Wetted parts: 316L SS
Dimension: 100mm diameter X 37mm depth X132mm height
Weight: 0.45kg
Communication: RS232 (DB9/F, environmentally sealed) Baud Rate: 115200
Software: WINDOWS95/98/ME/NT/2000/XP/VISTA BASED
