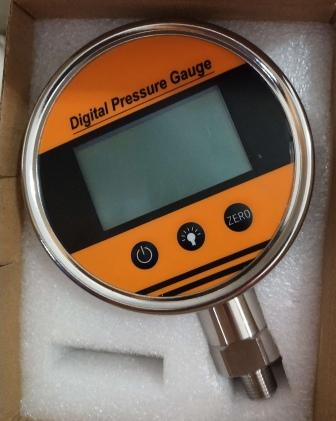

MC2080Y Digital Pressure Gauge is a battery powered intelligent pressure gauge with high precision, tracking speed, simple operation and reliable self-protection function. The product applies whole electronic structure and silicon piezoresistive sensor chip, with powerful anti-jamming capability, fast sampling speed, digital filtering techniques to ensure its high accuracy, low drift, reliable performance, anti-corrosion, anti-vibration, long life, and self-protection function.

It can be applied to liquid, gaseous or vaporous media without ex-proof requirement. It is suitable for on-site pressure measurement or high-precision pressure measurement in laboratories. As an excellent alternative to mechanical pressure gauge with high precision, it also can be used to calibrate general pressure gauge.

Technical Specification

Power: 3.6V battery; or AC220V; or DC24V;

Accuracy: 0.1%; 0.25%

Compensating temperature range: 0~65℃

Indicating pressure unit: MPa, Pa, Psi, bar, KPa, Tor, Atm, Kgf (kgf/cm2), MMH(mmH2O), MH2(mH2O).

Connection size: M20×1.5; G½"; ½" NPT or customized

Packing size: W×L×H 130×94×40 mm

Nominal display size: 82mm, 100mm, 150mm

Wetted Material: stainless steel 304, 316 (or customized)

Humidity：No more than 85% RH

Stainless steel case or plastic case available.

Large-screen LCD display, high resolution, back light, easy to read.

Automatically record the maximum and minimum pressure values available.

Auto-off feature.

Micro-power consumption, over 2 years in power-saving mode, continuous work 2,000 hours.

Parameter correction, correct zero and error in field application.

Sampling rate: 4 times/sec
