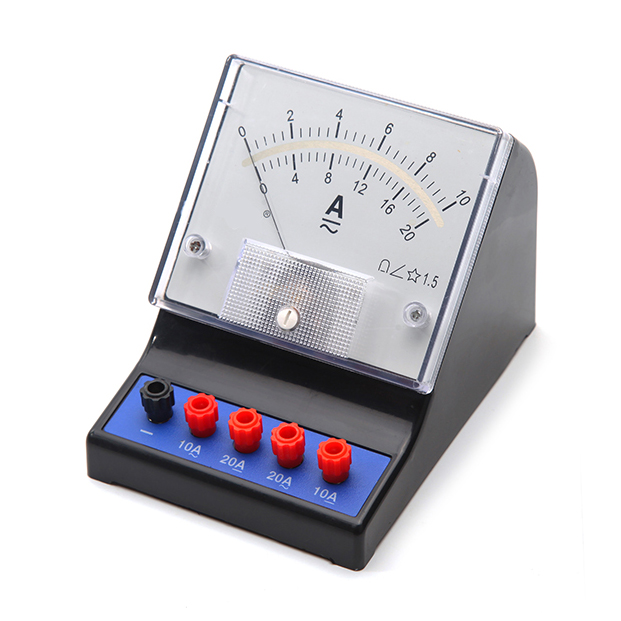

  • Pointer Type Teaching Electricity Meter

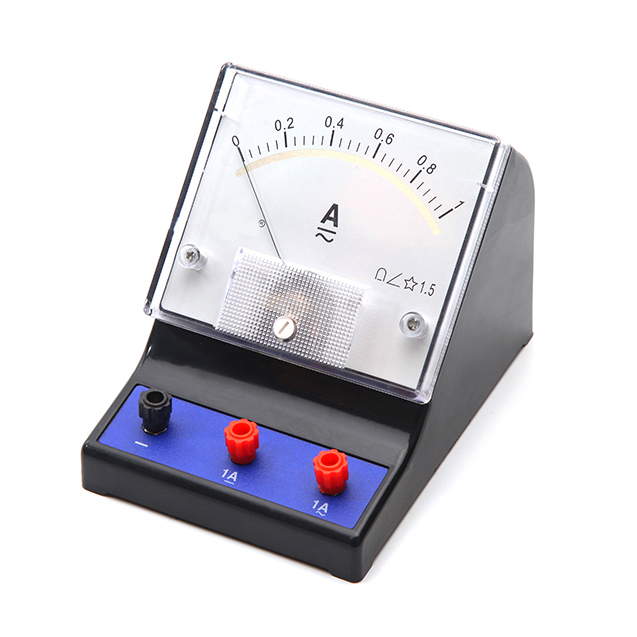

  • Pointer Type Teaching Electricity Meter

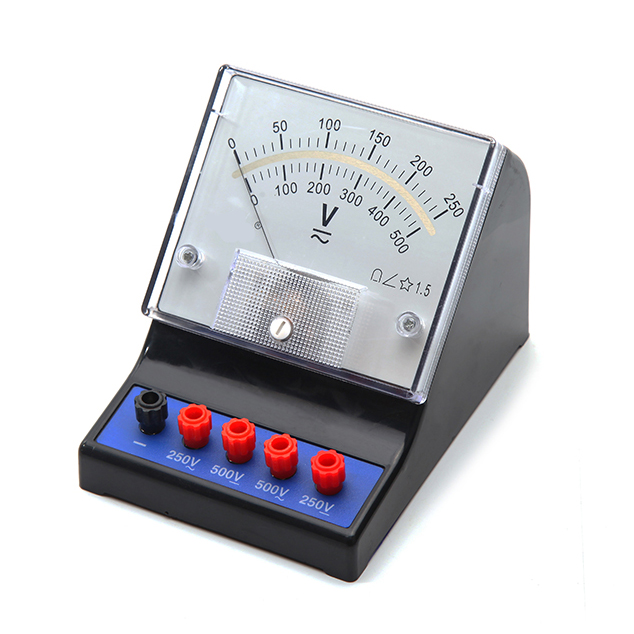

  • Pointer Type Teaching Electricity Meter

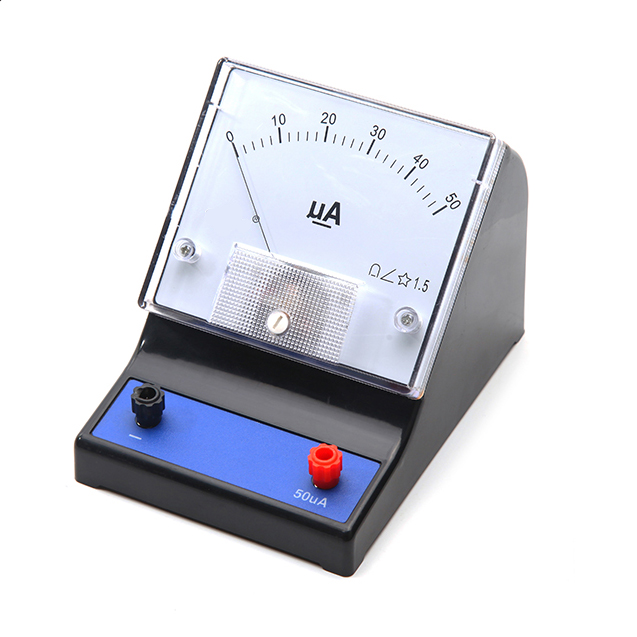

  • Pointer Type Teaching Electricity Meter
Pointer Type Teaching Electricity MeterPointer Type Teaching Electricity MeterPointer Type Teaching Electricity MeterPointer Type Teaching Electricity Meter

Pointer Type Teaching Electricity Meter

Summarization

Product name

Pointer Type Teaching Electricity Meter

Measuring range

DC 0-50uA; AC/DC 0-200V 0-500V; 0-10A 0-20A

Size

133*97*97mm

Accuracy

1.5

Pointer color

black

Shell color

black

Certification

CE PSE RoHS SGS

Inner structure

Moving coil

Working temperature

-10~55°C

Basic Specification

Name

Precision

Normal Specification

Remark

AC ammeter

A

1.5

0.5A-20A

Can be directly connected

A

2.5

30A-100A

Can be directly connected

A

2.5

10/5A-10k/5A

Secondary current passed by CT

AC voltmeter

V

1.5

10V-750V

Can be directly connected

kV

1.5

1kV-35kV

100V secondary voltage passed by voltage transformer

DC ammeter

uA  mA

2.5

50uA-500uA 1mA-500mA

Can be directly connected

A

1.5

1A-15A

Can be directly connected

A

1.5

15A-3kA

Outer attached shunt 75mV 60mV 50mV

DC voltmeter

V

1.5

3V-600V

Can be directly connected

kV

1.5

1kV-3kV

Outer attached resistance

Frequency meter

Hz

1.0

45-55Hz 55-65Hz

36V,100V, 127V, 220V, 380V

Power meter

KW Var

2.5

100V 380V 380-380kV

100V secondary voltage passed by voltage;Secondary current passed by current transformer 5-10kA/5A

Power factor meter

Cos

2.5

COSΦ=0.5-1-0.5

100V/5A  220V/5A  380V/5A

Three phase synchroscope

Syn

2.5

100V 220V 380/100V

Gauge outfit integration, with insulation monitor

Max. demand meter

A  kA

3.0

10/5A-10k/5A

Secondary current passed by CT

Contour & Installation Size (unit:  mm)

Meter Size

Surface Size

Shell Size

Installation Size

Width (D)

Height (H)

Width (D)

Height (H)

Depth (L)

Width (D)

Height (H)

48 square

48

48

43

43

65

42

42

72 square

72

72

67

67

85

67

68

96 square

96

96

91

91

80

92

92
