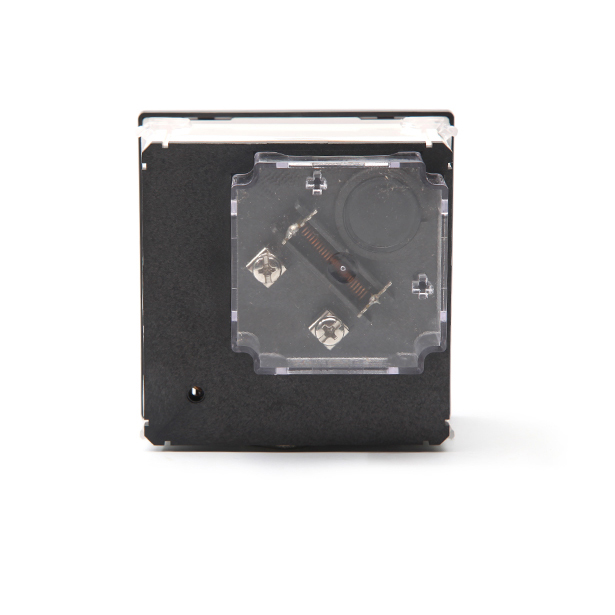

Summarization
|
Product name |
Pointer meter |
|
Display type |
Pointer type |
|
Size |
96*96mm |
|
Accuracy |
1.5 |
|
Frequency |
50Hz |
|
Pointer color |
black |
|
Shell color |
White |
|
Certification |
CE PSE RoHS SGS |
|
Inner structure |
Moving iron |
|
Working temperature |
-10~55°C |
Basic Specification
|
Name |
Precision |
Normal Specification |
Remark |
|
|

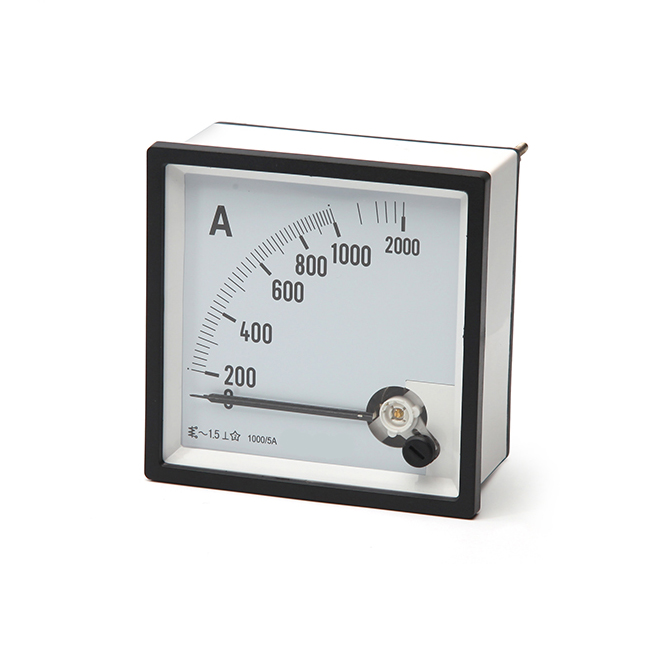

AC ammeter |
A |
1.5 |
0.5A-20A |
Can be directly connected |
|
A |
2.5 |
30A-100A |
Can be directly connected |
|
|
A |
2.5 |
10/5A-10k/5A |
Secondary current passed by CT |
|
|

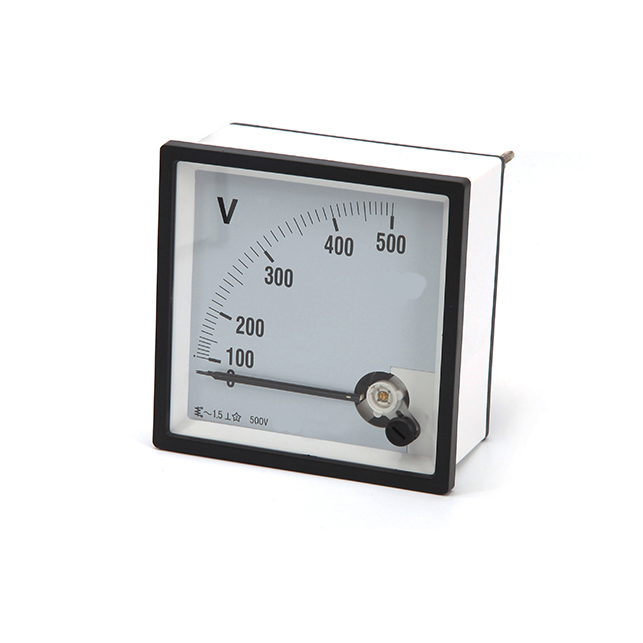

AC voltmeter |
V |
1.5 |
10V-750V |
Can be directly connected |
|
kV |
1.5 |
1kV-35kV |
100V secondary voltage passed by voltage transformer |
|
|
DC ammeter |
uA mA |
2.5 |
50uA-500uA 1mA-500mA |
Can be directly connected |
|
A |
1.5 |
1A-15A |
Can be directly connected |
|
|
A |
1.5 |
15A-3kA |
Outer attached shunt 75mV 60mV 50mV |
|
|
DC voltmeter |
V |
1.5 |
3V-600V |
Can be directly connected |
|
kV |
1.5 |
1kV-3kV |
Outer attached resistance |
|
|

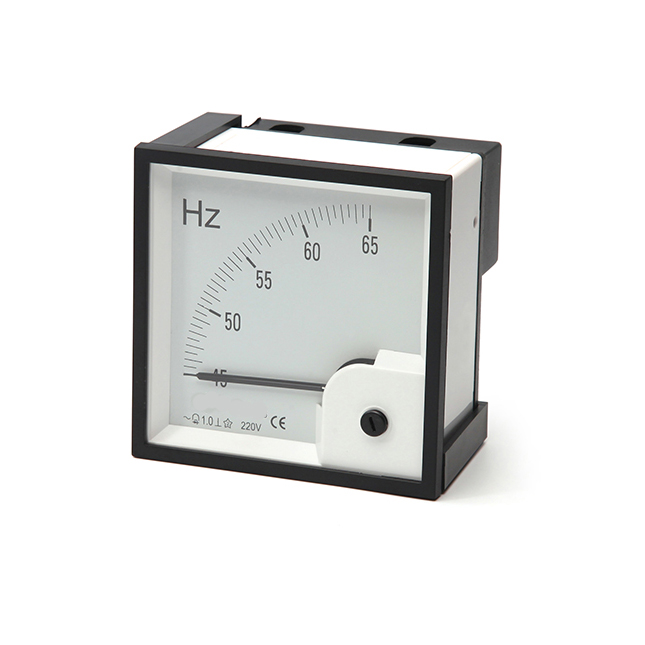

Frequency meter |
Hz |
1.0 |
45-55Hz 55-65Hz |
36V,100V, 127V, 220V, 380V |
|

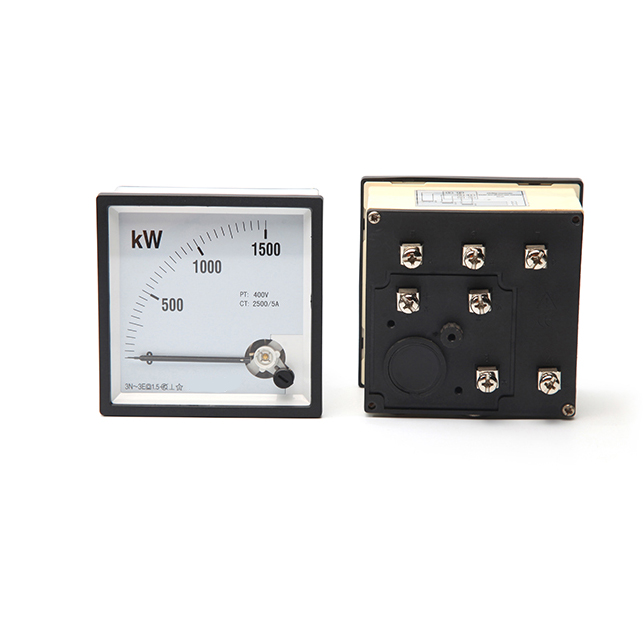

Power meter |
KW Var |
2.5 |
100V 380V 380-380kV |
100V secondary voltage passed by voltage;Secondary current passed by current transformer 5-10kA/5A |
|
Power factor meter |
Cos |
2.5 |
COSΦ=0.5-1-0.5 |
100V/5A 220V/5A 380V/5A |
|
Three phase synchroscope |
Syn |
2.5 |
100V 220V 380/100V |
Gauge outfit integration, with insulation monitor |
|
Max. demand meter |
A kA |
3.0 |
10/5A-10k/5A |
Secondary current passed by CT |

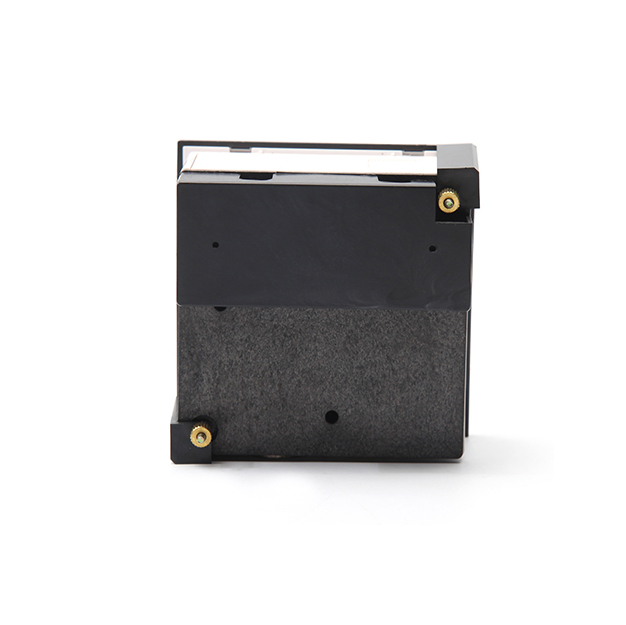

Contour & Installation Size unit: mm
|
Meter Size |
Surface Size |
Shell Size |
Installation Size |
||||
|
Width (D) |
Height (H) |
Width (D) |
Height (H) |
Depth (L) |
Width (D) |
Height (H) |
|
|
48 square |
48 |
48 |
43 |
43 |
65 |
42 |
42 |
|
72 square |
72 |
72 |
67 |
67 |
85 |
67 |
68 |
|
96 square |
96 |
96 |
91 |
91 |
80 |
92 |
92 |
