Analog Pointer Meter

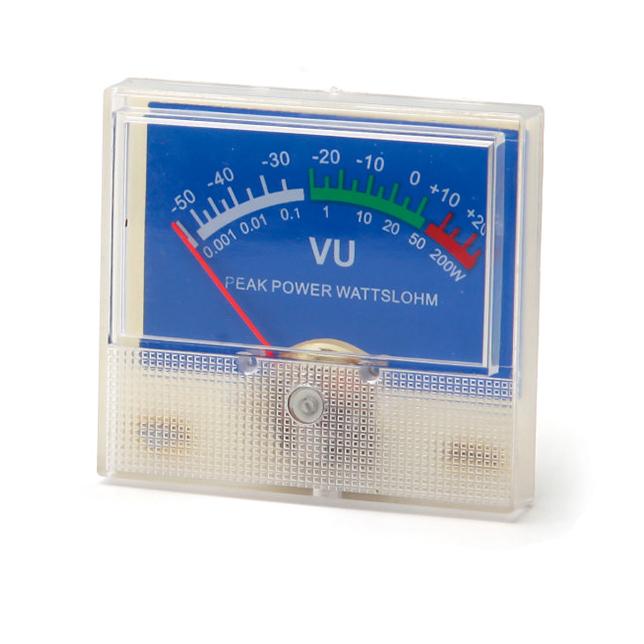

  • Mini Audio Panel VU Meter
  • Mini Audio Panel VU Meter
Mini Audio Panel VU Meter Mini Audio Panel VU Meter

Mini Audio Panel VU Meter

Summarization

Product name

Mini Audio Panel VU Meter

Input

DC 1 mA ±10%

Internal Resistance

600Ω±10%

 Accuracy

5.0

The scale display

can be customized

 Shape size

55*47mm

 Back Shell color

White

Certification

CE PSE RoHS SGS

Inner structure

Moving Coil

 Working temperature

-10~55°C


Basic Specification

Resistance (Ω) ±10%

1000

650

450

165

110

11

Sensitivity (uA) ±10%

250

500

1000

2500

5000

DC Voltmeter

40~1000mV  1~1000V

Direct connection

DC Ammeter

1~1000mA

Direct connection

AC voltmeter

1~500V

Direct connection

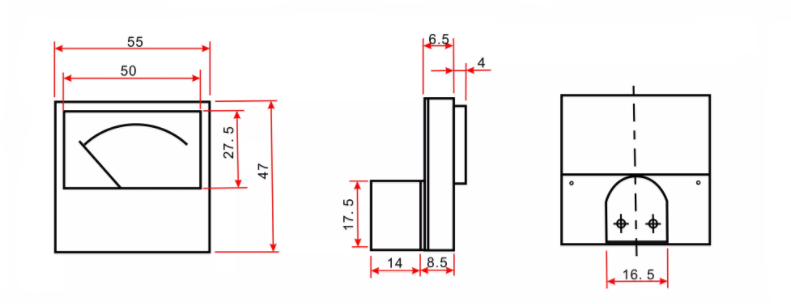

Shape and dimensions unit:  mm
