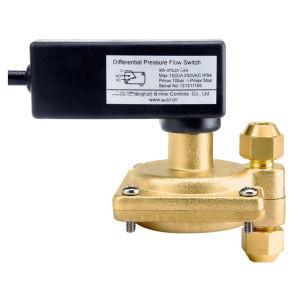

MC204B differential pressure switch is widely used in the HAVC system, which is based on HVAC equipment pressure drop (resistance) and performance curve of the flow. As a flow control switch, the instrument has the advantages of accurate flow controlling, no additional resistance to the system, no requirement for water pipe diameter and no disturbance from water flow. It can play the role of water flow detection and controlling. The instrument can also be used in other situations where gas or liquid differential pressure is controlled (such as wind pressure control and liquid level control, etc.).
Parameters:
Model:
|
Model |
Switch setting |
Material |
Connection |
|
MC204B- |
03= Switch setting 3kpa，hysteresis 1.2KPa 05= Switch setting 5kpa，hysteresis 1.5KPa 06= Switch setting 6kpa，hysteresis 1.6KPa 08= Switch setting 8kpa，hysteresis 1.8KPa 10= Switch setting 10kpa，hysteresis 2KPa 12= Switch setting 12kpa，hysteresis 2.5KPa 15= Switch setting 15kpa，hysteresis 3KPa 17= Switch setting 17kpa，hysteresis 3.5KPa ……… 100= Switch setting 100kpa，hysteresis 40KPa |
A：Brass B：Stainless steel |
1/4”SAE |
