Summarization
|
Product name |

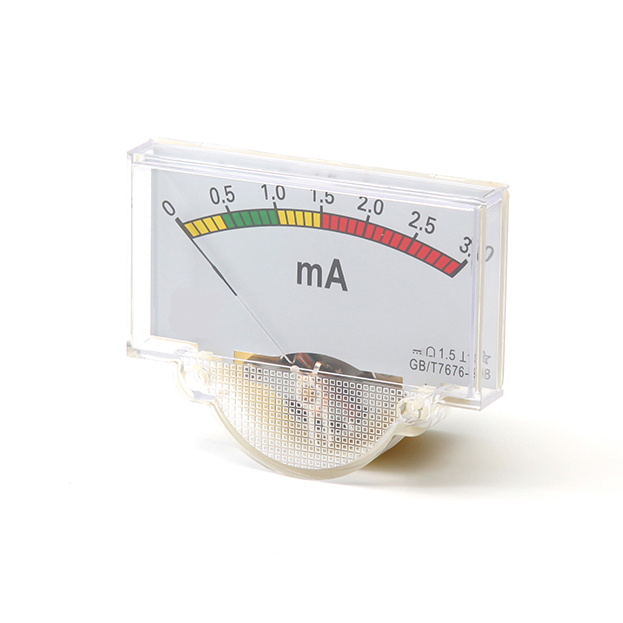

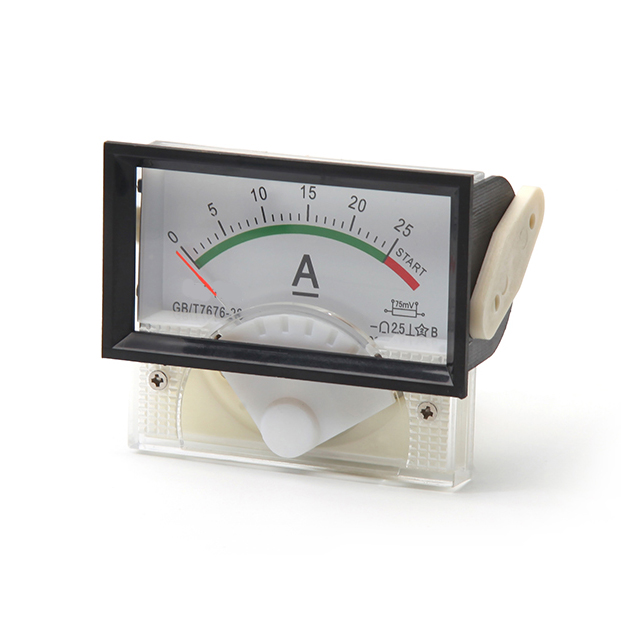

Rectangle Pointer Type Electricity Panel Meter |
|
Measuring Range |
DC 0-3.0mA 0-25A |
|
Size |
80*44mm; 64*56mm |
|
Accuracy |
1.5 |
|
Voltage |
AC 110V/220V/380V |
|
Zero position |
left of scale line |
|
Shell color |
White |
|
Certification |
CE PSE RoHS SGS |
|
Inner structure |
Moving coil |
|
Working temperature |
-10~55°C |
Basic Specification
|
Name |
Normal Specification |
Remark |
|
|
AC ammeter |
A |
0.5A-20A |
Can be directly connected |
|
A |
30A-100A |
Can be directly connected |
|
|
A |
10/5A-10k/5A |
Secondary current passed by CT |
|
|
AC voltmeter |
V |
10V-750V |
Can be directly connected |
|
kV |
1kV-35kV |
100V secondary voltage passed by voltage transformer |
|
|
DC ammeter |
uA mA |
50uA-500uA 1mA-500mA |
Can be directly connected |
|
A |
1A-15A |
Can be directly connected |
|
|
A |
15A-3kA |
Outer attached shunt 75mV 60mV 50mV |
|
|
DC voltmeter |
V |
3V-600V |
Can be directly connected |
|
kV |
1kV-3kV |
Outer attached resistance |
|
|
Frequency meter |
Hz |
45-55Hz 55-65Hz |
36V,100V, 127V, 220V, 380V |
|
Power meter |
KW Var |
100V 380V 380-380kV |
100V secondary voltage passed by voltage;Secondary current passed by current transformer 5-10kA/5A |
|
Power factor meter |
Cos |
COSΦ=0.5-1-0.5 |
100V/5A 220V/5A 380V/5A |

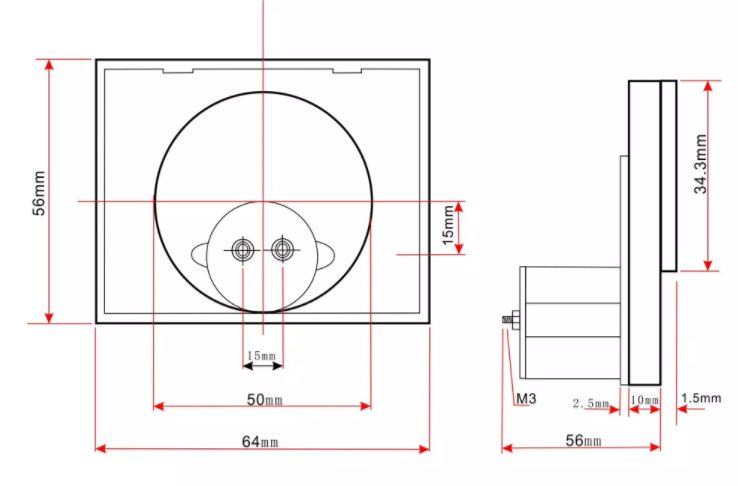

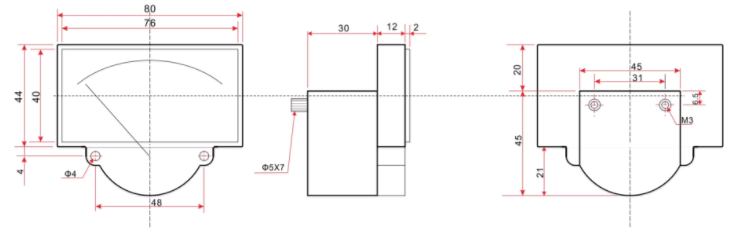

Dimensions
