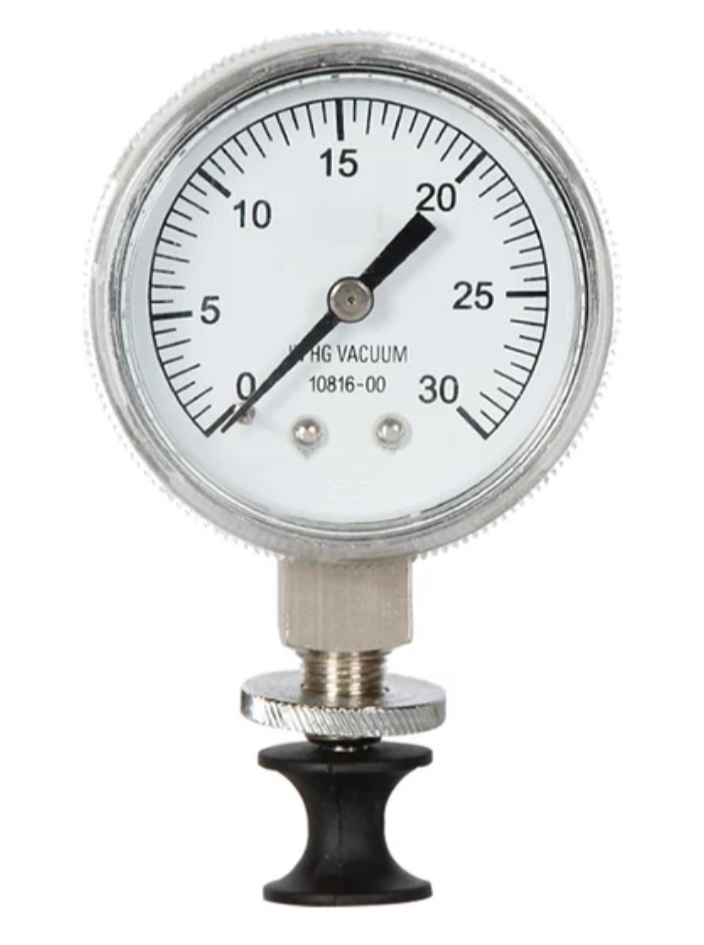

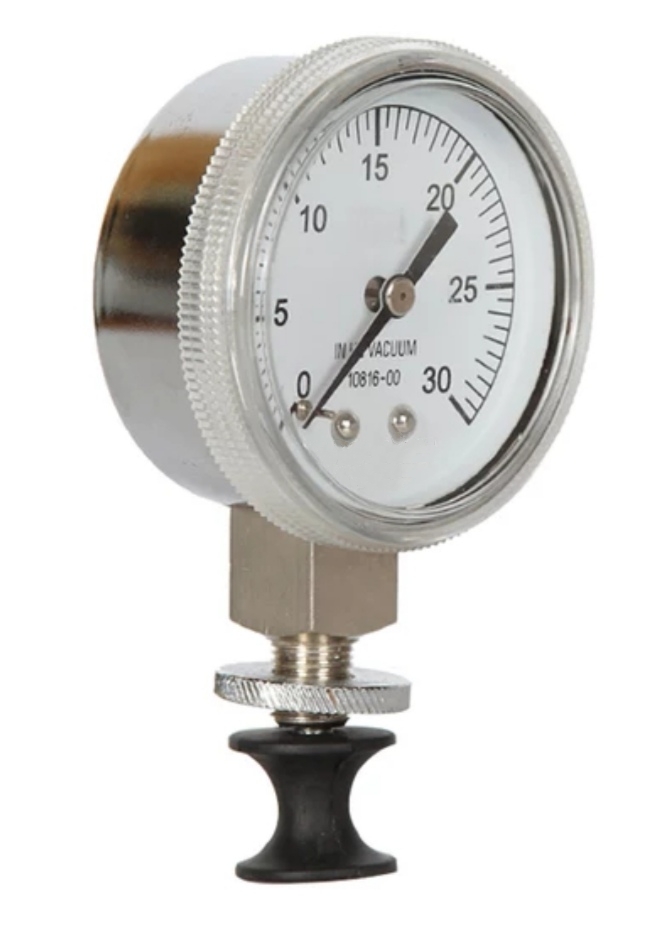

Description: Used for test the pressure of Canner

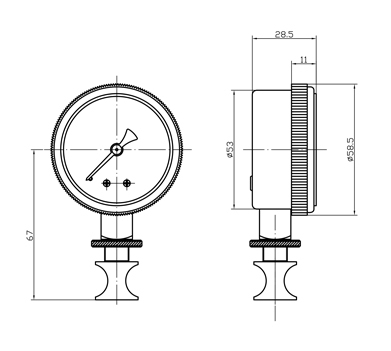

Size: 2"
Pressure Range: 30” HG-0 Vac，30"Hg-0-15 PSI，30"Hg-0-300 PSI
Socket: Brass LM
Connection thread: Mounted w/pierce fitting,1/8 Knurl nut attached
Tube: Copper alloy
Case: Chrome plated steel
Window(Lens): Screw on acrylic lens
Dial plate: Single and dual scale (psi, kpa, mpa, bar, kg/cm2)
Accuracy: +/-3-2-3% of full scale (ASME B40.1 Grade B)
Ambient temperature: -40℃ to 60 ℃
