Technical Specification
Nominal Size: 63, 100 and 150mm
Accuracy Class: Class 1.6,Class 1.0(φ＞100mm)
Ingress Protection: IP65
Connection Size: G1/4,G1/2 or NPT
Scale Range: Pressure 0..1000 bar; Vacuum -1 bar..0; Compound -1..24 bar
Tube Element Shape: P ≤ 100 bar in C tube; P＞100 bar in helicoid

Filling: Dry or liquid filled

Operating Temperature: Ambient temperature -10°..+70°C; Medium temperature 90°C Max.
Temperature Error: Additional error when pressure element temperature deviates from reference temperature +20°C（+68°F）, is ±0.4% / 10°C（50°F） rising or falling
Over Pressure Limit: 130% of F.S.P ≤ 100 bar; 115% of F.S.P＞100 bar

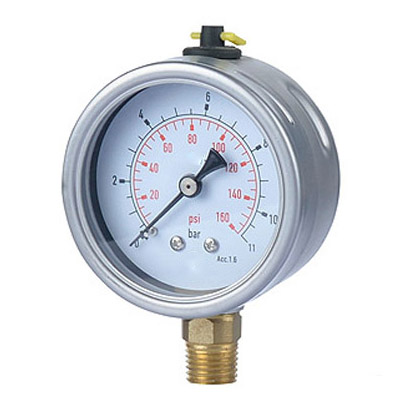

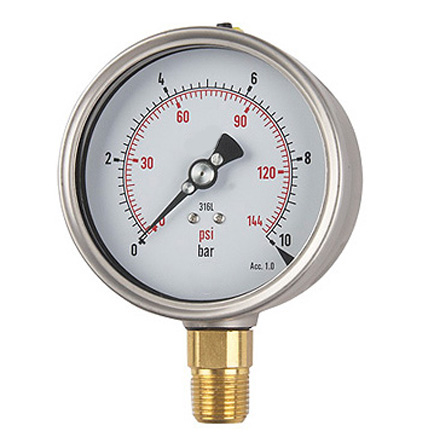

Dial Graduation: Black graduation on white for single range; Black and red graduation on white for dual ranges

Design Material
Casing and Bezel Ring: Stainless steel 304
Sensing Element: Copper alloy
Connection: Brass
Window: Tempered glass,
Window Gasket: Industrial rubber seal
Pointer: Black painted aluminum
Dial Plate: Aluminum alloy
