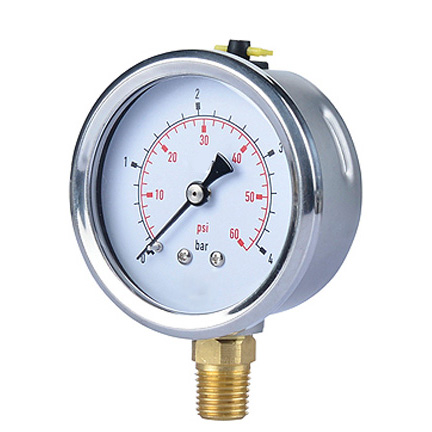

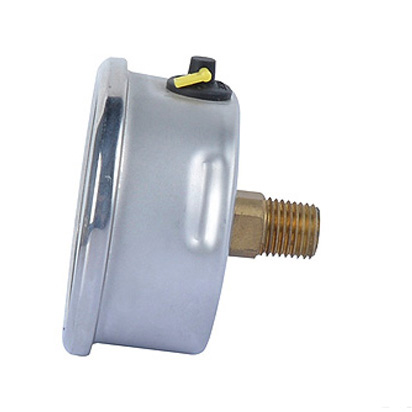

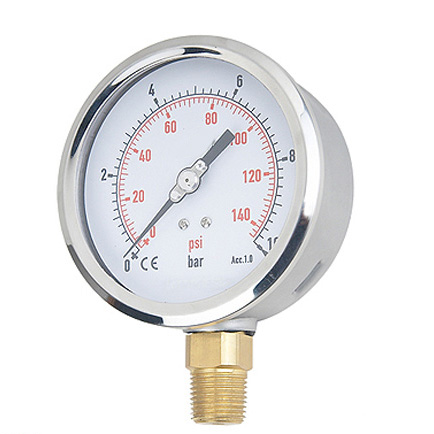

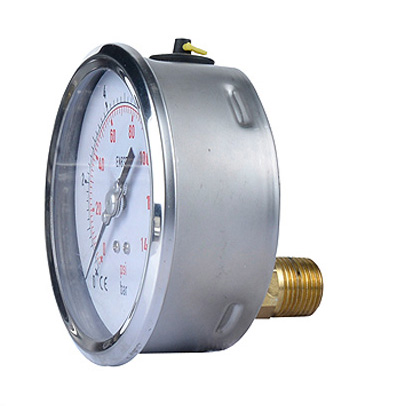

Crimped SS Case Pressure Gauge

Application
MY-CRS Series is a special design with stainless steel case and copper alloy wetted part and fillable option for extreme vibration application and non-corrosive ambient field condition, with crimped lock case design. Applicable for pneumatic and hydraulic systems, compressors, engines, pumps, sprinkles system, building automation system and processing unit where vibration is concern.


Technical Specification
Nominal Size: 63, 100 and 150mm
Accuracy Class: Class 1.6,Class 1.0(φ>100mm)
Ingress Protection: IP65(Weather tight)
Connection Size: G1/4,G1/2 or NPT
Scale Range: Pressure 0..1000 bar; Vacuum -1 bar..0; Compound -1..24 bar
Tube Element Shape: P ≤ 100 bar in C tube; P>100 bar in helicoil

Filling: Dry or liquid filled
Operating Temperature: Ambient temperature -10°..+70°C; Medium temperature 90°C Max.
Temperature Error: Additional error when pressure element tmperature deviates from reference temperature 20°C(+68°F), is ±0.4% / 10°C(50°F) rising or falling
Over Pressure Limit: 130% of F.S.P ≤ 100 bar; 115% of F.S.P>100 bar
Dial Graduation: Black graduation on white for single range; Black and red graduation on white for dual ranges


Design Material
Casing and Bezel Ring: Stainless steel 304
Sensing Element: Copper alloy
Connection: Brass
Window: Plastic
Window Gasket: Industrial rubber seal
Pointer: Black painted aluminium
Dial Plate: Aluminium alloy
