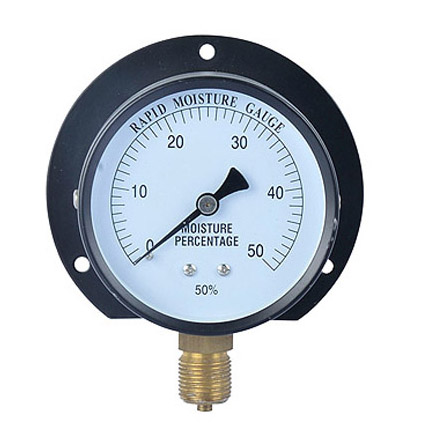

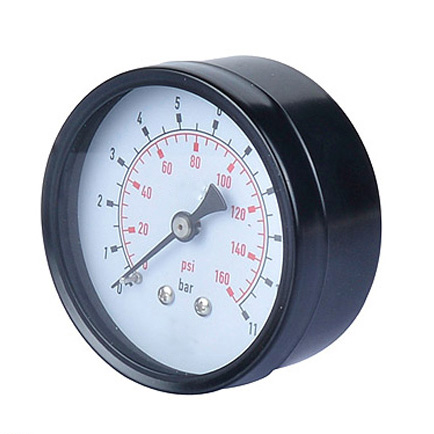

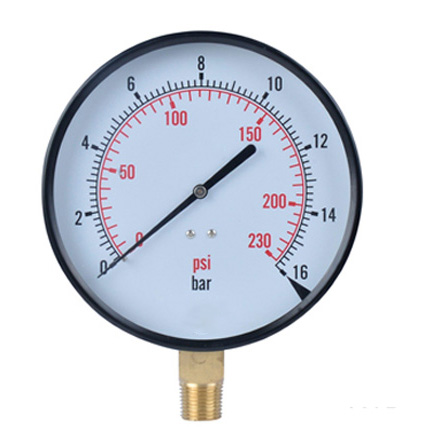

Black Steel Case Pressure Gauge

Application

MY-S series are high quality dry pressure gauge designed to provide reliable service on non-corrosive and clean medium applications. This model are mostly used in manufacturing or processing industrial, especially for pneumatics process, fabrication, compressed gas and common industrial application.


Technical Specification

Nominal Size: 40,50,63,75,100,150,200,250mm
Accuracy Class: 40..75mm-Class 2.5; 100..250mm-Class 1.6
Ingress Protection: IP32
Connection Size: G1/8,G1/4,G1/2 or NPT or others
Scale Range: Pressure 0..600 bar; Vacuum -1 bar..0; Compound -1..24 bar
Filling: Dry execution

Tube Element Shape: P≤100 bar in C tube; P100 bar in helicoid
Operating Temperature: Ambient temperature -10°..+70°C; Medium temperature 70°C Max.
Temperature Error: Additional error when pressure element temperature deviates from reference temperature +20°C(+68°F), is ±0.4% / 10°C(50°F) rising or falling
Over Pressure Limit: 130% of F.S.P ≤ 100 bar; 115% of F.S.P100 bar

Dial Graduation: Black graduation on white for single range; Black and red graduation on white for dual ranges


Design Material
Casing and Bezel Ring: Black steel; Chromed steel; Plastic
Sensing Element: Copper alloy
Connection: Brass
Window: Acrylic plastic; Instrument glass
Window gasket: Plastic
Pointer: Black painted aluminum

Dial Plate: Aluminum alloy
