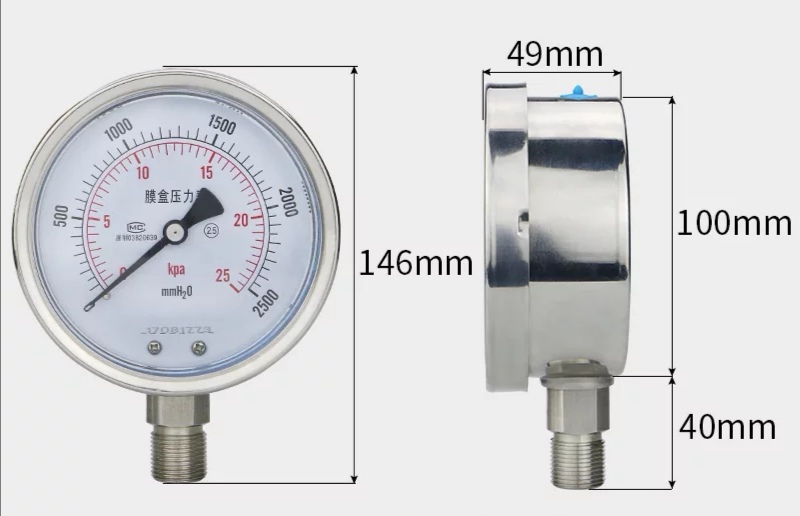

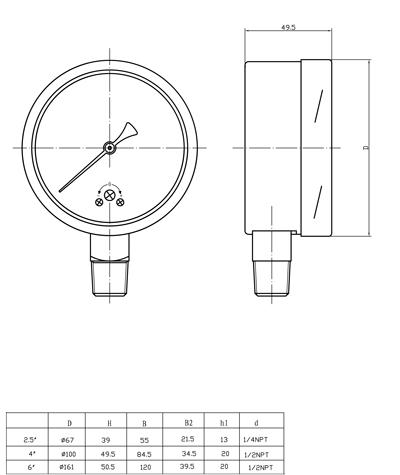

Size: 630, 75, 100, 150, 200, 250mm
Pressure range: -0.1MPa~0~100kpa
Socket: Heavy-duty 304SS or 316ss

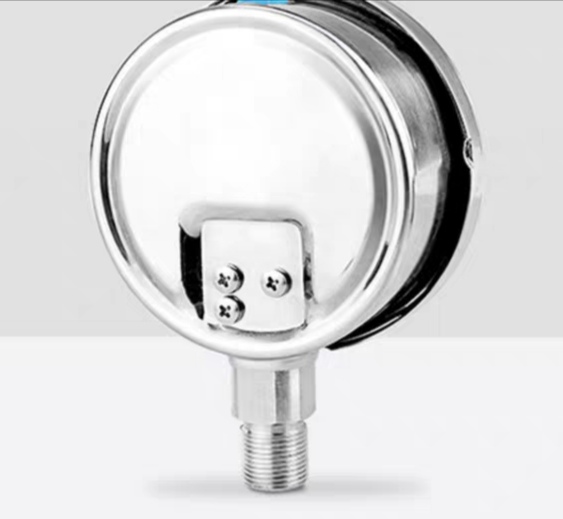

Mounting: lower mount or back mount
Connection thread: NPT, BSP customized threads
Tube: 304SS or 316 SS
Case: 304 Stainless steel
Bezel: Removable stainless steel bezel
Window (lens): Polycarbonate, glass and acrylic
Dial plate: Single and dual scale (psi, kpa, mpa, bar, kg/cm2)
Accuracy: 1.6%, 2.5% (ASME B40.1 Grade B)
Ambient temperature: -25~55℃
