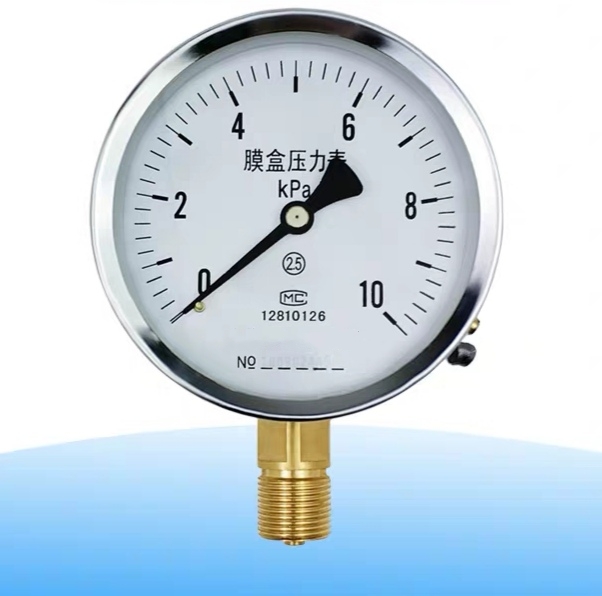

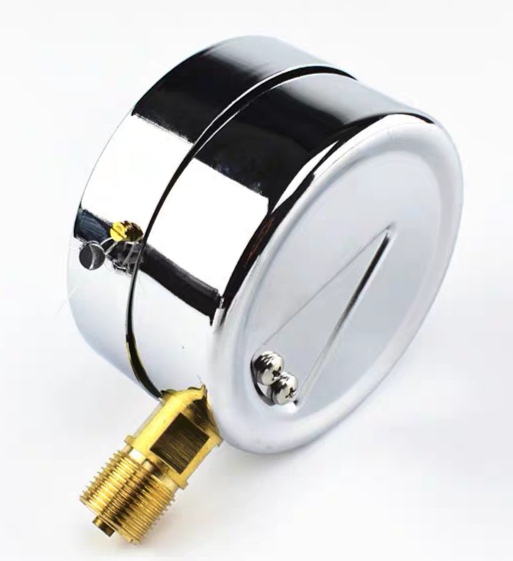

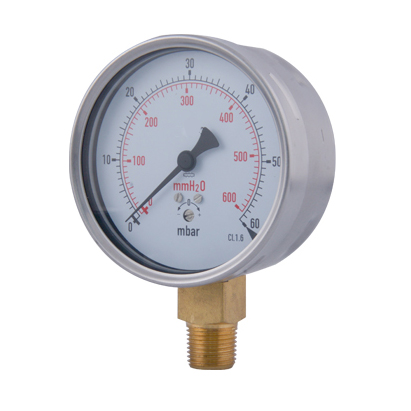

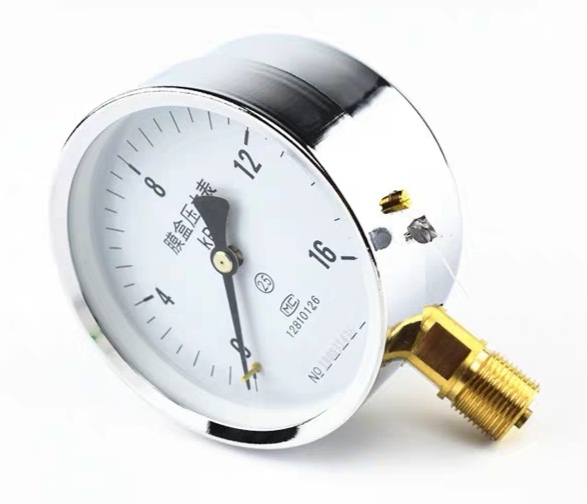

MYM-SSC series is a premium capsule gauge designed for use in low pressure measurement on non-corrosive and clean condition. It is application for dry and gaseous that not affect the cupreous metal sensing element. Blow out back case for dial 100 and 160 mm. With expanded overpressure resistance, the application is allowed for transient overpressure up to +30% of full-scale.
Technical Specification
Nominal Size: 63, 75, 100 and 160 mm
Accuracy Class: Class 1.6, Class 2.5(φ63,75mm)
Ingress Protection: IP 44
Connection Size: G3/8, G1/4, G1/2 or NPT or others
Scale Range: Pressure 0..10 to 0..1000 mbar; *φ63,75mm min range 16 mbar; Vacuum -600 mbar..0; Compound -200..+400 mbar
Tube Element Shape: Capsule type diaphragm tube
Filling: Dry type
Operating Temperature: Ambient temperature -10°..+70℃; Medium temperature 90℃ Max.
Temperature Error: Additional error when pressure element temperature deviates from reference temperature +20℃(+68°F), be ±0.4% / 10℃(50°F) rising or falling
Over Pressure Limit: 130% of Full Scale
Dial Graduation: Black graduation on white for single range; Black and red graduation on white for dual ranges
Design Material
Casing and Bezel Ring: Stainless steel 304
Capsule type: Copper alloy
Connection: Brass
Window: Plain instrument glass
Window gasket: Industrial rubber seal
Pointer: Black painted aluminum
Dial Plate: Aluminum alloy
