Size: 2.5"(63mm), 4.0"(100mm), 6.0"(150mm)
Pressure range: -0.1MPa~0~100kpa

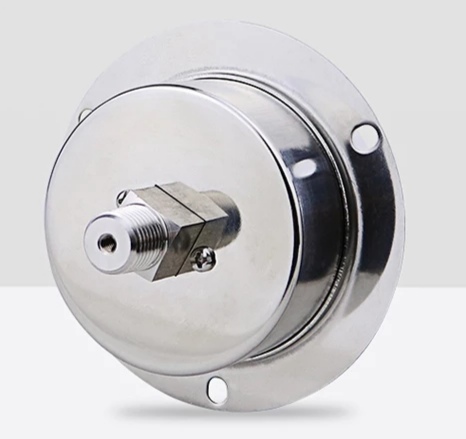

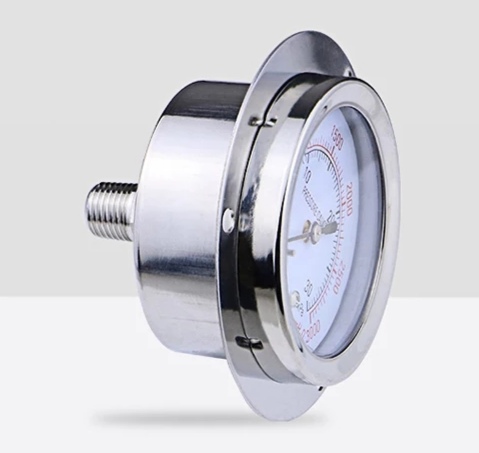

Socket: Edged mounted, lower back connected or center back connected
Connection thread: NPT, BSP customized threads
Tube: Brass or copper alloy or stainless steel
Case: Stainless steel or steel
Bezel: Removable stainless steel bezel
Window (lens): Polycarbonate, glass and acrylic

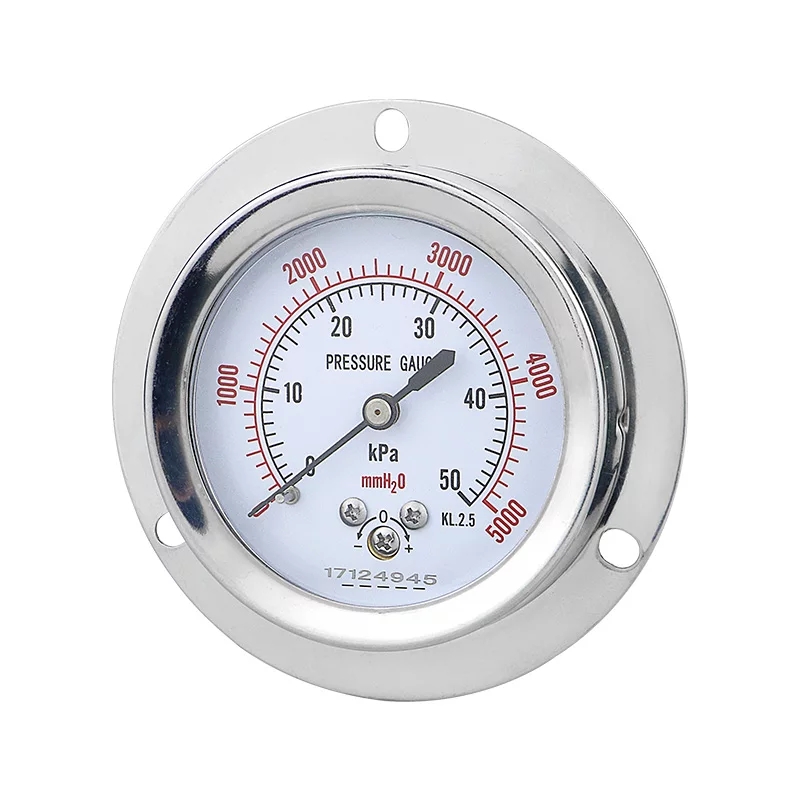

Dial plate: Single and dual scale (psi, kpa, mpa, bar, kg/cm2)
Accuracy: 1.6%, +/-2.5% (ASME B40.1 Grade B)
Ambient temperature: -25~55℃
|
Model |
KPa Measuring range |
±% Precision Grade |
Weight Kg |
||
|
Plus |
Minus |
P&M |
|||
|
MYM-EBC |
0~1 0~1.6 0~2.5 0~4 0~6 0~10 0~16 0~25 0~40 0~60 0~100 |
-1.6~0 -2.5~0 -4~0 -6~0 -10~0 -16~0 -25~0 -40~0 |
-0.8~+0.8 -1.2~+1.2 -2~+2 -3~+3 -5~+5 -8~+8 -12~+12 -20~+20 |
2.5 |
0.5 |
